Base on couse 2, Changed step 4 to

• 4, Create a QVTKOpenGLWidget

  //step 0: set it to a window:
  auto vw = new  QVTKOpenGLWidget(this) ;
  vtkRenderWindow *renWin = vw->GetRenderWindow();
  ui->tabWidget->addTab( vw, __FUNCTION__);

  vtkRenderer *render= vtkRenderer::New();

  render->SetBackground( 0.1, 0.2, 0.4 );

  vtkSmartPointer<vtkConeSource> coneSource = vtkSmartPointer<vtkConeSource>::New();
  coneSource->SetRadius(.2);
  coneSource->SetHeight(.5);
  coneSource->SetCenter(0, 0, 0);


  vtkSmartPointer<vtkPolyDataMapper> coneMapper =
      vtkSmartPointer<vtkPolyDataMapper>::New();
  coneMapper->SetInputConnection(coneSource->GetOutputPort());
  vtkSmartPointer<vtkActor> coneActor =
      vtkSmartPointer<vtkActor>::New();
  coneActor->SetMapper(coneMapper);

  vtkSmartPointer<vtkActor> oriConeActor =
      vtkSmartPointer<vtkActor>::New();
  oriConeActor->SetMapper(coneMapper);

  render->AddActor(oriConeActor);

  double AXIS_LEN = 1.0;
  vtkSmartPointer<vtkAxesActor> oriAxesActor =
      vtkSmartPointer<vtkAxesActor>::New();
  oriAxesActor->SetPosition(0, 0, 0);
  oriAxesActor->SetTotalLength(AXIS_LEN, AXIS_LEN, AXIS_LEN);
  oriAxesActor->SetShaftType(0);
  oriAxesActor->SetAxisLabels(0);
  oriAxesActor->SetCylinderRadius(0.02);


  render->AddActor(oriAxesActor);

  renWin->AddRenderer( render );

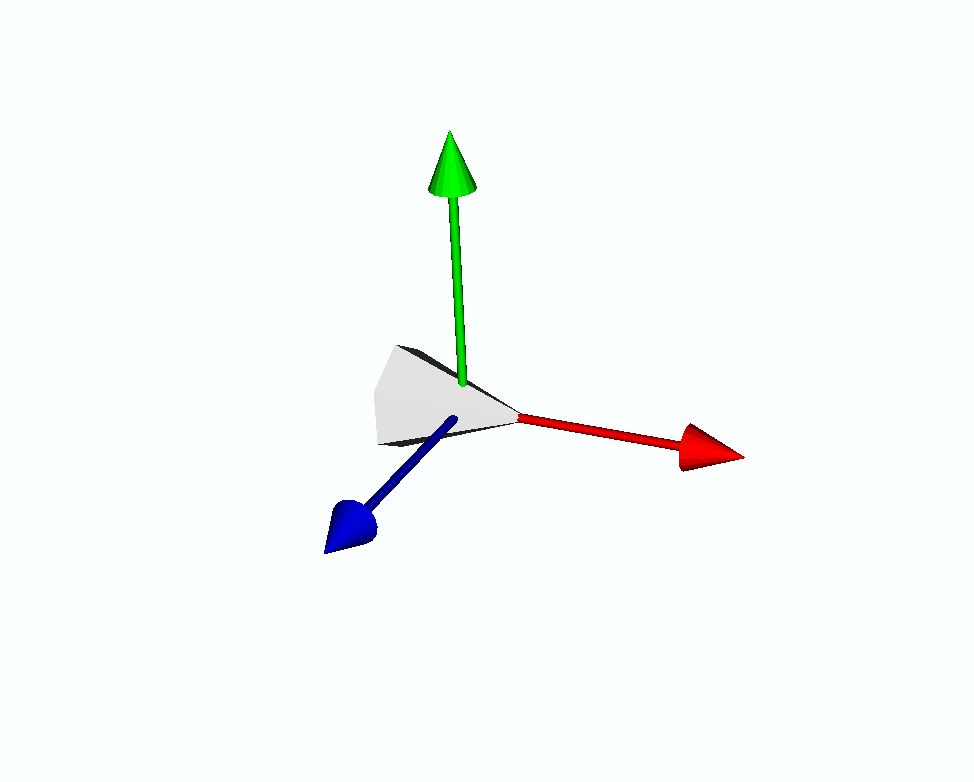

• 5, Build and run You will get:

---
